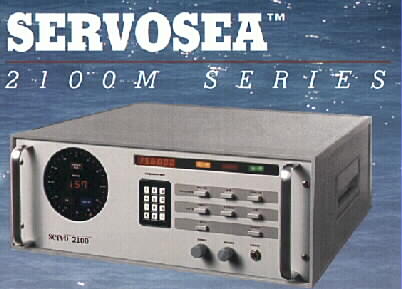

SERVOSEAtm   2100M Series

Direction Finder Systems

Specifications


SPECIFICATIONS

 Model        Freq.       Aperture        Dipoles       Local       Remote

2105M      VHF        MEDIUM          8                    Yes

2110M      VHF        WIDE                16                  Yes

2115M      VHF        MEDIUM           8                    Yes             Yes

2120M      VHF        WIDE                16                   Yes              Yes

OPERATING CHARACTERISTICS

Principle of Operation:                Quasi Doppler

Bearing Accuracy:                      +/-1 ° (Instrumental)   3° (Site)

Vertical Angle Coverage:             0°     (Horizontal) to 60 ° elevation

Frequency Range:                       116 to 174 MHz

Operating Channels:                    2320; Scans 100

Channel Spacing:                         25 kHz

Channel Selection                        Keypad; Up to 100 preset channels (with scanning)

DF Sensitivity :                            5 uV/m field strength for indicated bearing within ± 2 deg.

Operational Control:                    Local or Remote

Receiver Characteristics

  • Sensitivity (AM)   1.5 uV for l0dB (S + N) IN with 30% AM at 1000 Hz
  • Selectivity (IF)      VHF: 6dB Passband t 10 kHz; 60 dB Rejection ± 18 KHz
  • Image, Spurious, EF Rejection 80 dB to within 100 kHz of Channel Frequency
  • Demodulation Audio Out VHF: AM 11 5.975 to 143.975  FM 144.000 to 174.025
  • Frequency Accuracy - 15 ppm

Bearing Display:         Ring- of -Lights: 72 LEDs every 5 deg. on surrounding compass rose

                                     Digital: 3 Digits:   (000 to 359deg.) with 7-Segment LED Indicators

Audio Output:      Speaker or Headphone Jack adjustable to maximum output of at least + 10 dBm to 600 ohms

Local/Remote Interface:     FSK Data, frequency multiplexed with audio, over 4 -wire voice grade 600 ohm telecom circuit or other transmission mode.

EXTERNAL INTERFACE

RS232, 300 baud data link for connection to a modem

EXTERNAL POWER REQUIREMENTS

Receiver/Bearing Processor 150 watts

Bearing Display/Control 100 watts

Antenna Arrays 200 watts (for obstruction lamps on wide-aperture type only)

ENVIRONMENTAL CHARACTERISTICS

Receiver/Bearing Processor :    40, to + 601 C; Humidity up to 90%

Bearing Display/ Control :        40' to + 60 deg. C; Humidity up to 90%

Antenna Arrays:                       Withstand wind velocity 0 to 100 mph with 0.50 inch ice loading;  -50°C to + 70° C; Humidity up to 100%

DIMENSIONS & WEIGHT

Receiver/Bearing Processor                                                Bearing Display/Control

Height 17.8 cm (7 in.)                                                         Height 17.8 cm (7 in.)

Width 48.3 cm (19 in.)                                                       Width @.3 cm (19 in.)

Depth 50.8 cm (20 in.)                                                       Depth 50.8 cm (20 in.)

Weight 17.6 Kg (39 lbs.)                                                   Weight 16.7 Kg (37 lbs.)
